Osher Rafaeli

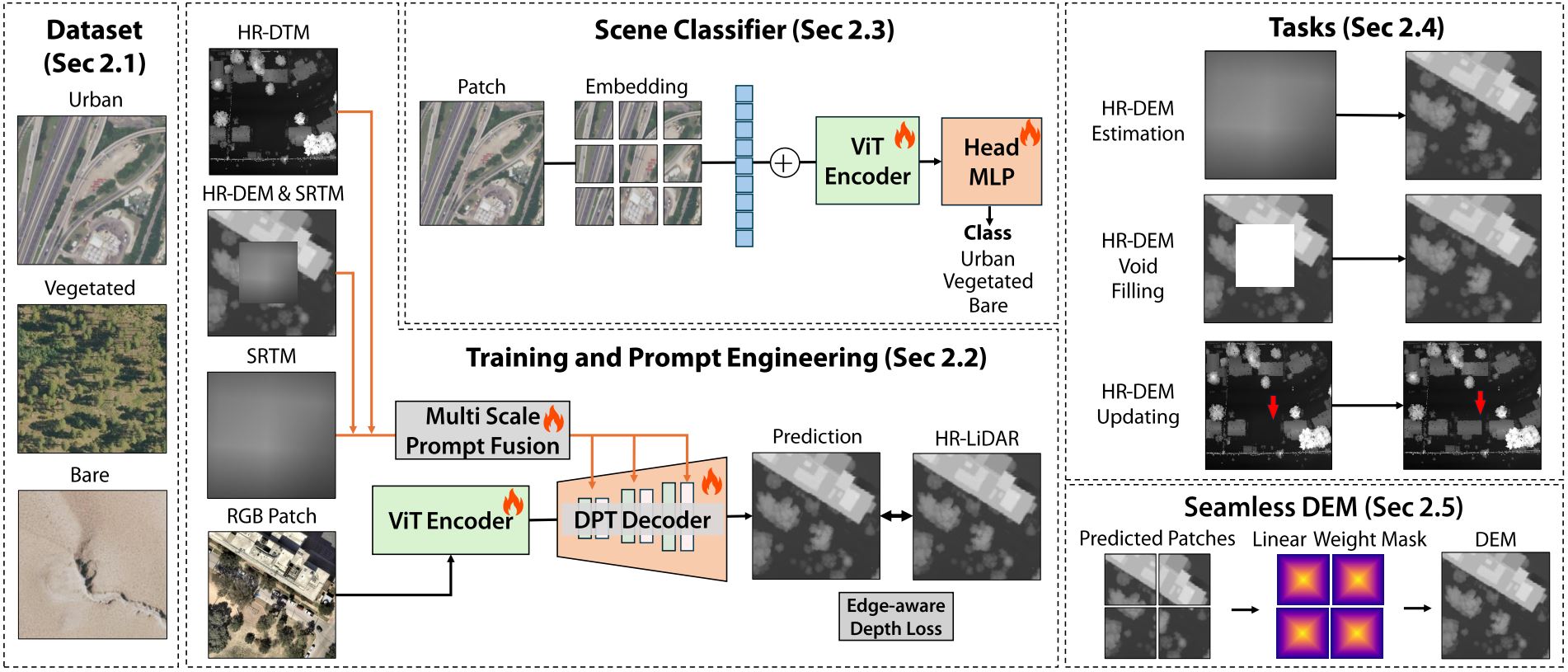

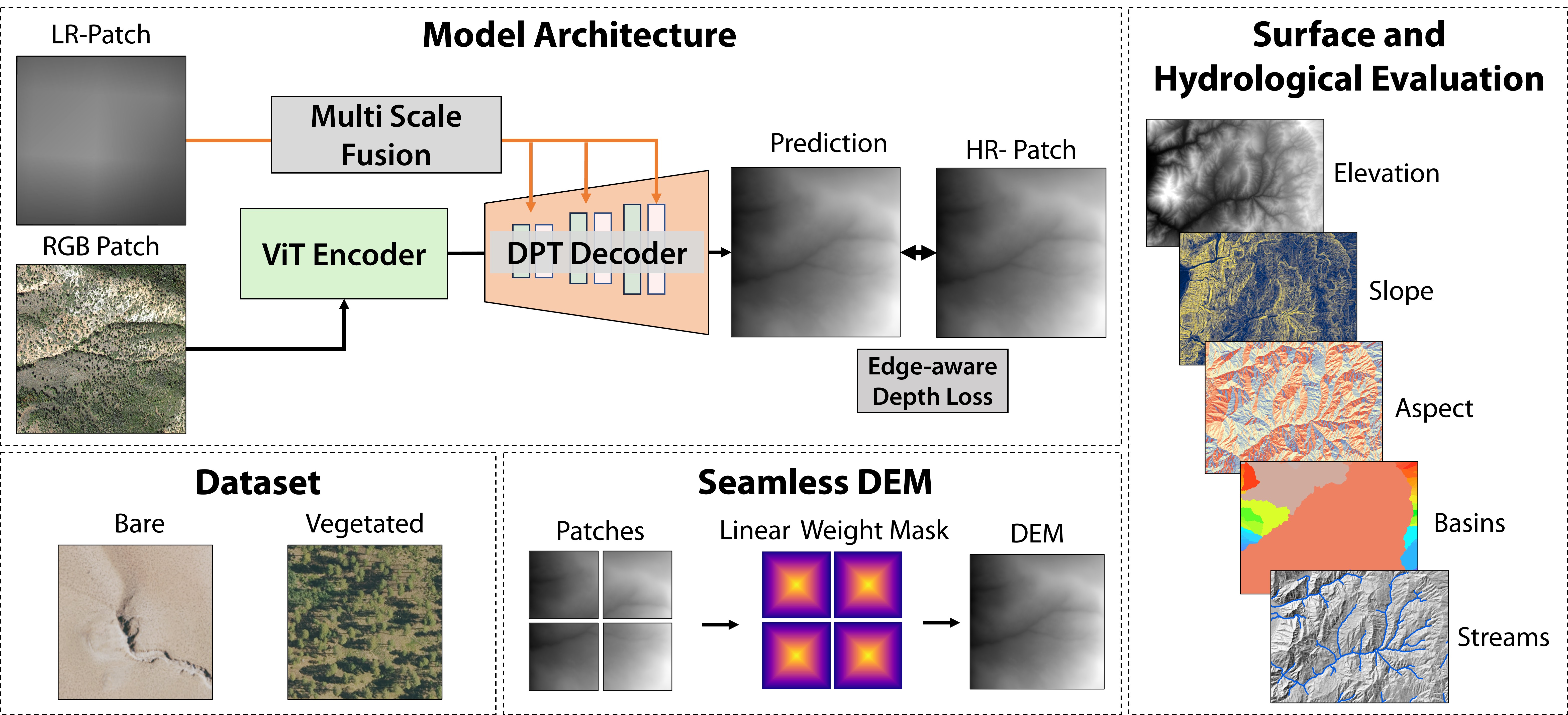

High-resolution elevation estimations are essential to understand catchment and hillslope hydrology, study urban morphology and dynamics, and monitor the growth, decline, and mortality of terrestrial ecosystems. Various deep learning approaches (e.g., super-resolution techniques, monocular depth estimation) have been developed to create high-resolution Digital Elevation Models (DEMs). However, super-resolution techniques are limited by the upscaling factor, and monocular depth estimation lacks global elevation context, making its conversion to a seamless DEM restricted. The recently introduced technique of prompt-based monocular depth estimation has opened new opportunities to extract estimates of absolute elevation in a global context. We present here a framework for the estimation of high-resolution DEMs as a new paradigm for absolute global elevation mapping. It is exemplified using low-resolution Shuttle Radar Topography Mission (SRTM) elevation data as prompts and high-resolution RGB imagery from the National Agriculture Imagery Program (NAIP). The approach fine-tunes a vision transformer encoder with LiDAR-derived DEMs and employs a versatile prompting strategy, enabling tasks such as DEM estimation, void filling, and updating. Our framework achieves a 100x resolution gain (from 30-m to 30-cm), surpassing prior methods by an order of magnitude. Evaluations across three diverse U.S. landscapes show robust generalization, capturing urban structures and fine-scale terrain features with < 5 m MAE relative to LiDAR, improving over SRTM by up to 18%. Hydrological analysis confirms suitability for hazard and environmental studies. We demonstrate scalability by applying the framework to large regions in the U.S. and Israel.

Soil sinkholes significantly influence soil degradation, but their irregular shapes, along with interference from shadow and vegetation, make it challenging to accurately quantify their properties using remotely sensed data. We present a novel framework for sinkhole segmentation that combines traditional topographic computations of closed depressions with the newly developed prompt-based Segment Anything Model (SAM). Within this framework, termed SinkSAM, we highlight four key improvements: (1) The integration of topographic computations with SAM enables pixel-level refinement of sinkhole boundaries segmentation; (2) A coherent mathematical prompting strategy, based on closed depressions, addresses the limitations of purely learning-based models (CNNs) in detecting and segmenting undefined sinkhole features, while improving generalization to new, unseen regions; (3) Using Depth Anything V2 monocular depth for automatic prompts eliminates photogrammetric biases, enabling sinkhole mapping without the dependence on LiDAR data; and (4) An established sinkhole database facilitates fine-tuning of SAM, improving its zero-shot performance in sinkhole segmentation. These advancements allow the deployment of SinkSAM, in an unseen test area, in the highly variable semiarid region, achieving an intersection-over-union (IoU) of 40.27\% and surpassing previous results. This paper also presents the first SAM implementation for sinkhole segmentation and demonstrates the robustness of SinkSAM in extracting sinkhole maps using a single RGB image.

This paper provides insights on the effectiveness of the zero shot, prompt-based Segment Anything Model (SAM) and its updated versions, SAM 2 and SAM 2.1, along with the non-promptable conventional neural network (CNN), for segmenting solar panels in RGB aerial remote sensing imagery. The study evaluates these models across diverse lighting conditions, spatial resolutions, and prompt strategies. SAM 2 showed slight improvements over SAM, while SAM 2.1 demonstrated notable improvements, particularly in sub-optimal lighting and low resolution conditions. SAM models, when prompted by user-defined boxes, outperformed CNN in all scenarios; in particular, user-box prompts were found crucial for achieving reasonable performance in low resolution data. Additionally, under high resolution, YOLOv9 automatic prompting outperformed user-points prompting by providing reliable prompts to SAM. Under low resolution, SAM 2.1 prompted by user points showed similar performance to SAM 2.1 prompted by YOLOv9, highlighting its zero shot improvements with a single click. In high resolution with optimal lighting imagery, Eff-UNet outperformed SAMs prompted by YOLOv9, while under sub-optimal lighting conditions, Eff-UNet, and SAM 2.1 prompted by YOLOv9, had similar performance. However, SAM is more resource-intensive, and despite improved inference time of SAM 2.1, Eff-UNet is more suitable for automatic segmentation in high resolution data. This research details strengths and limitations of each model and outlines the robustness of user-prompted image segmentation models.
